~ Restoration
of L-39C Albatros N139SR ~
~ Anoka County
Airport, Blaine, MN ~
The Aero Vodochody L-39 was built by
Czechoslovakia as the successor to their earlier trainer, the L-29 Delfin.
Design work began in 1966, and the first prototype made its initial flight
on November 4, 1968. The idea of the design was to marry an efficient,
powerful turbofan engine to a sleek, streamlined low-wing, tandem seating
fuselage, resulting in a strong all metal, economical performer which
would become the next standard jet trainer for the Warsaw Pact. Full-scale
production was delayed until late 1972 due to apparent problems with the
design of the air intakes, but these difficulties were overcome and the
type went on to be a great success with the Soviet, Czech and East German
air forces, among others.
Over 2,800 aircraft were produced in three main variants: The L-39C was
built as a pure trainer and was used by numerous air forces throughout
Eastern Europe beginning in 1974 and continuing through today. The armed
weapons-trainer variant is called the L-39ZA, and a close-support and
ground-attack version is called the L-39ZO. In addition to those mentioned
above, the L-39 has been exported to numerous countries, including
Afghanistan, Bulgaria, Estonia, Hungary, Iraq, Kyrghyzstan, Libya,
Romania, and Ukraine. A modernized derivative of the Albatros, the L-59, is still
being built in the Czech Republic.
With an unknown number still serving in
military service, the L-39 is the most popular jet warbird in the world,
with over 220 believed to be actively flying in the USA alone.
~ Aircraft Data & History ~ |

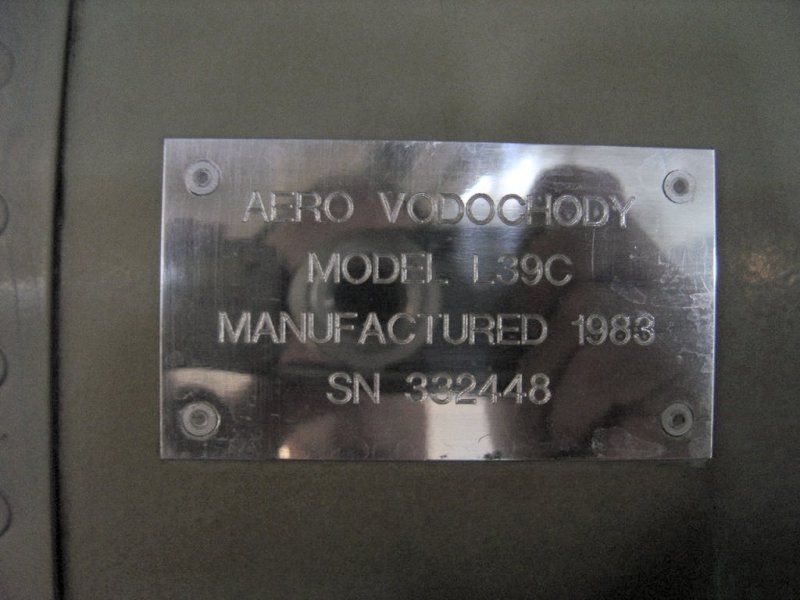

Manufacturer: |
Aero Vodochody |
Model: |
L-39C |
Serial Number: |
332448 |
Manufactured Date: |
1983 |
Military Operations Flight Number:
|
112 |
|
January 28, 1983
|
332448 was delivered to the
Russian Air Force from the Aero Vodochody factory and flew 1,356 hours with this
service. |
April 14, 1993
|
332448 was transferred to
the Ukraine Air force from Russia and flew 92 hours until the last Ukraine
military flight on December 26, 1994 when it was parked with 1,448 airframe
hours. |
May 4, 2000 |
332448 was discharged from the Ukraine
inventory, disassembled and shipped to the USA via a ship cargo container. |
October 1, 2000
|
332448 was reassembled and
certified in the USA as N139SR. |

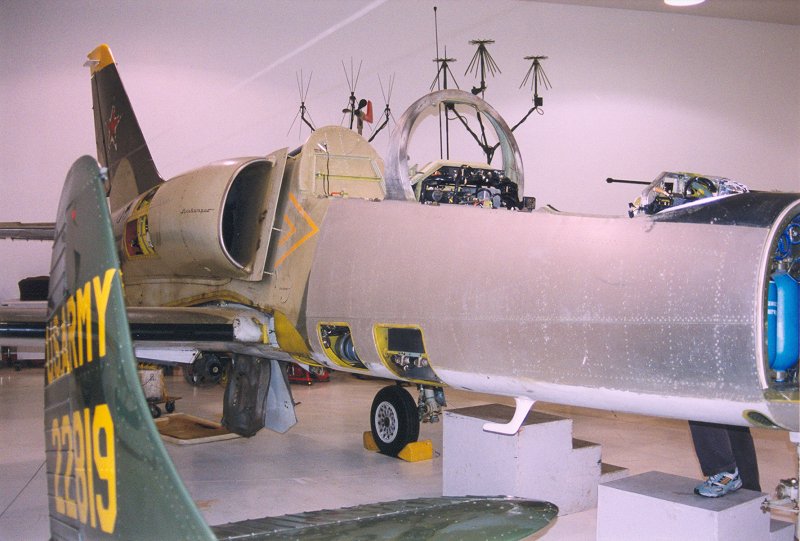

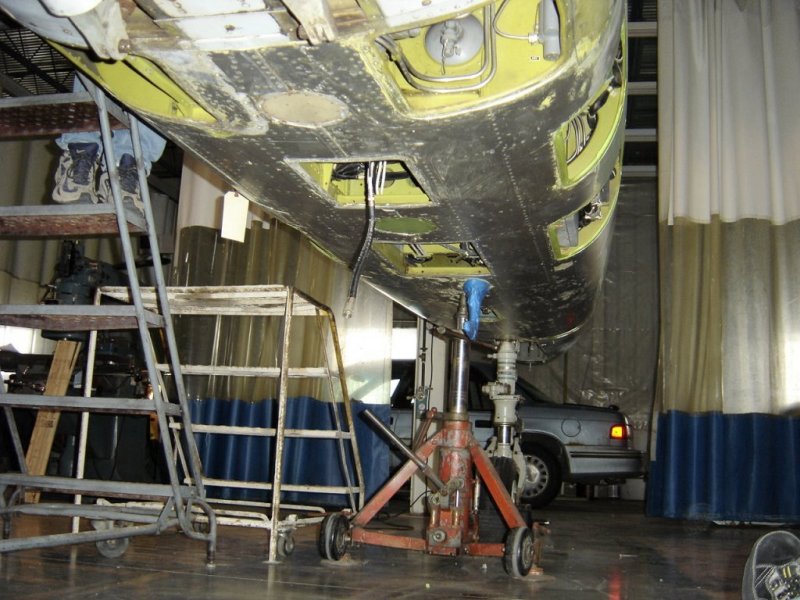

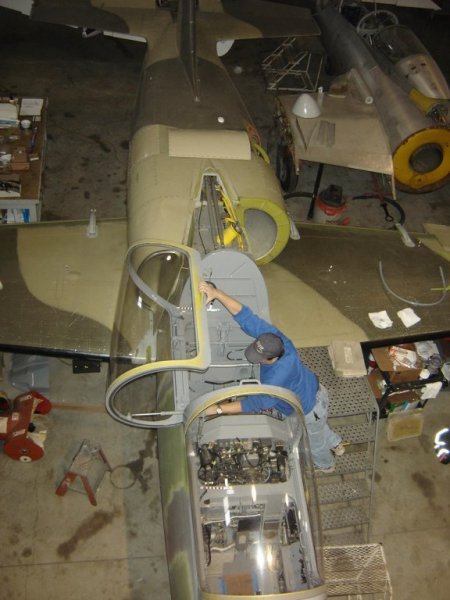

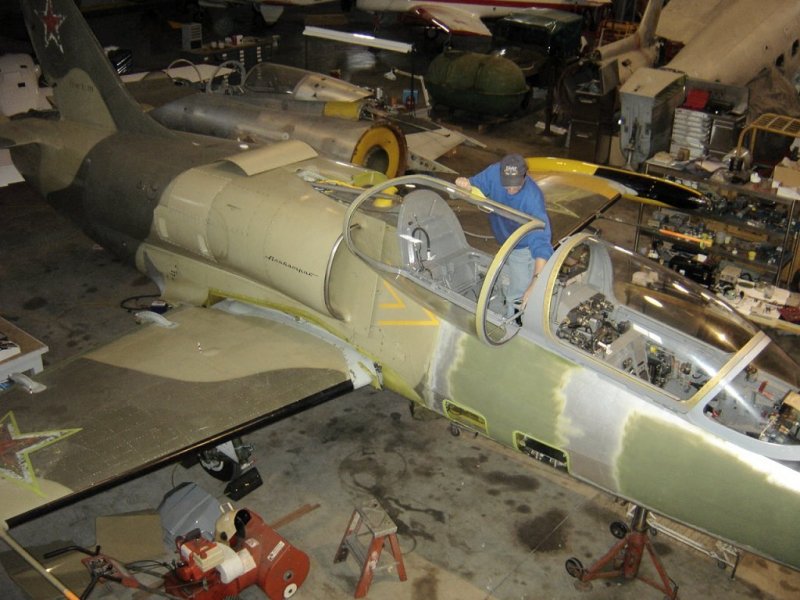

2003
|

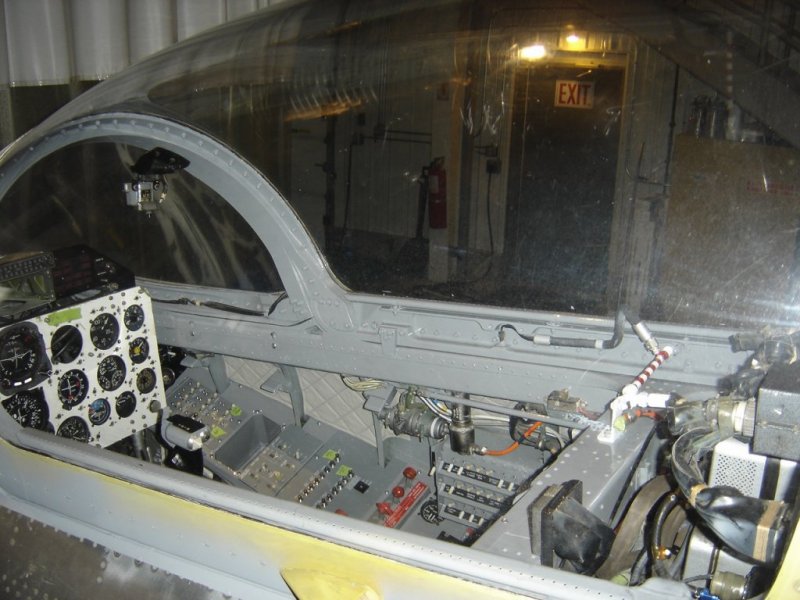

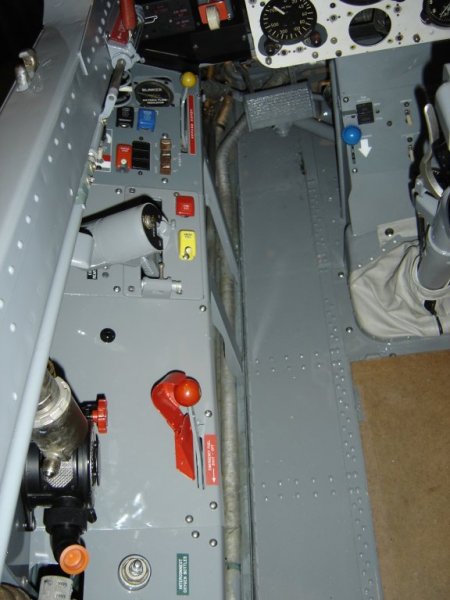

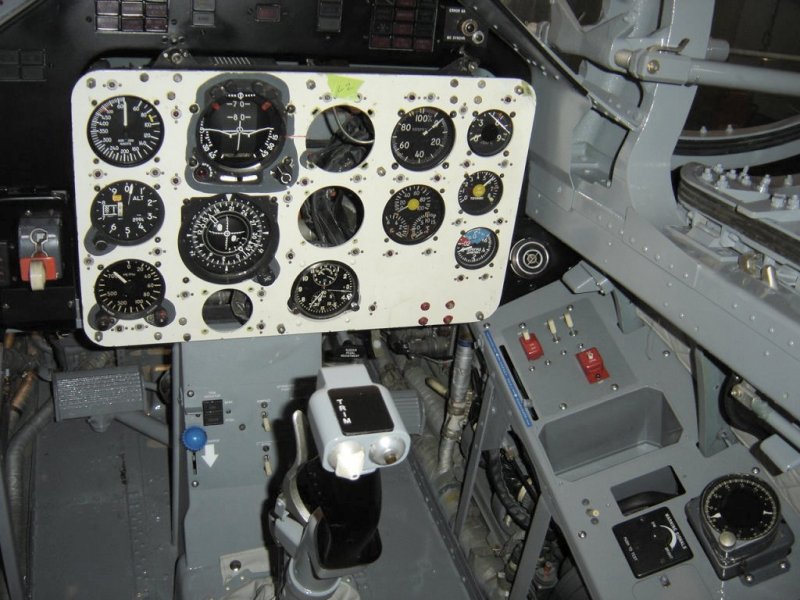

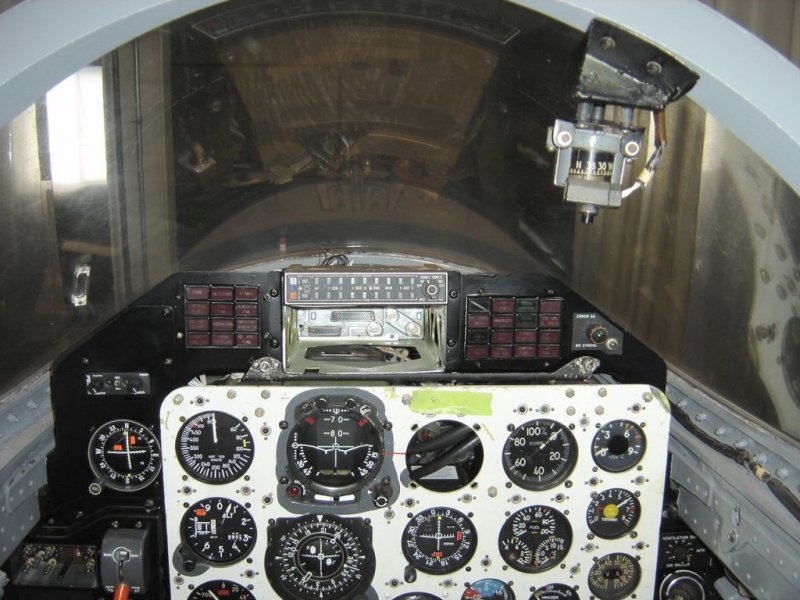

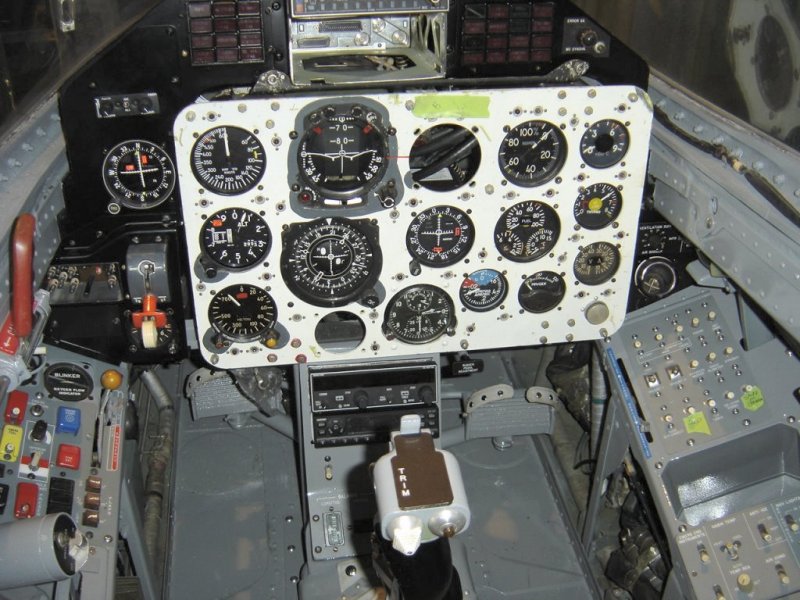

332448 restoration started
by removing Russian military avionics and installing modern U. S. certified
avionics.

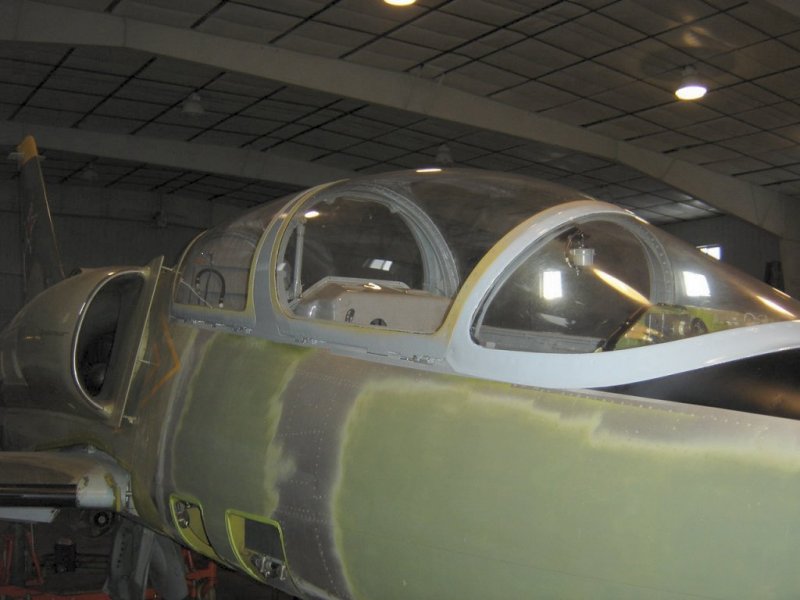

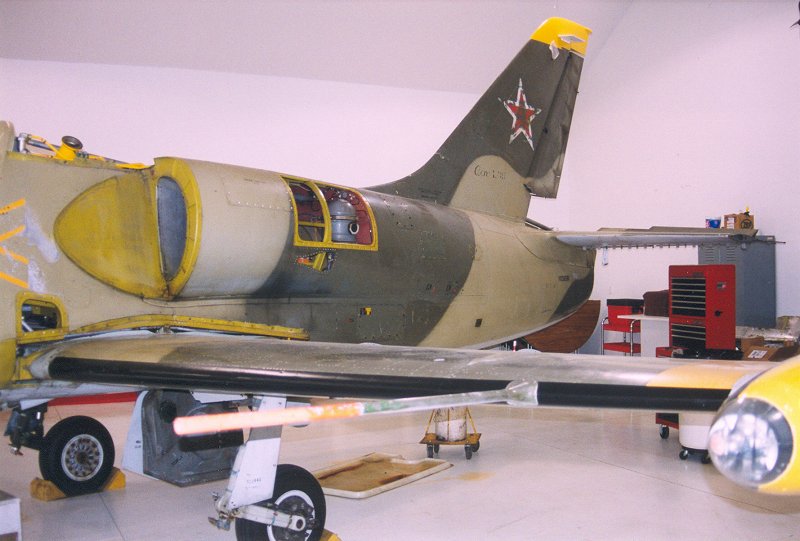

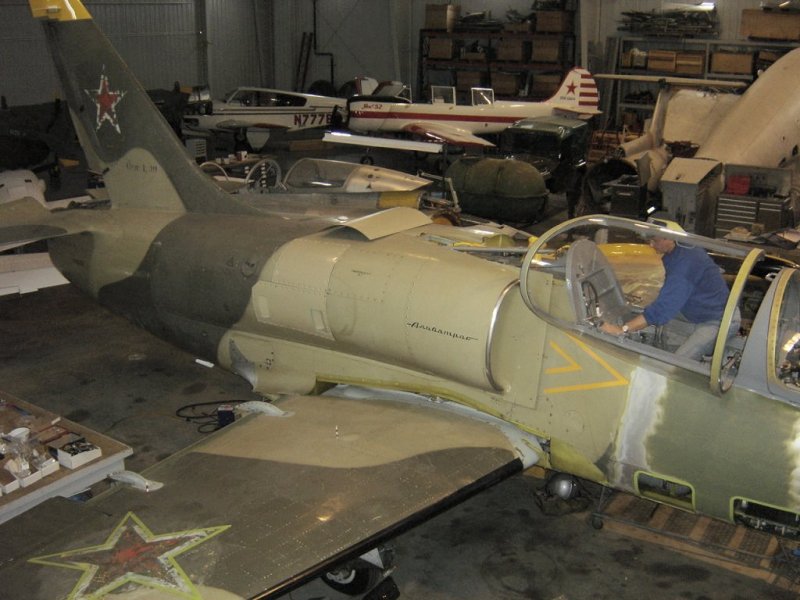

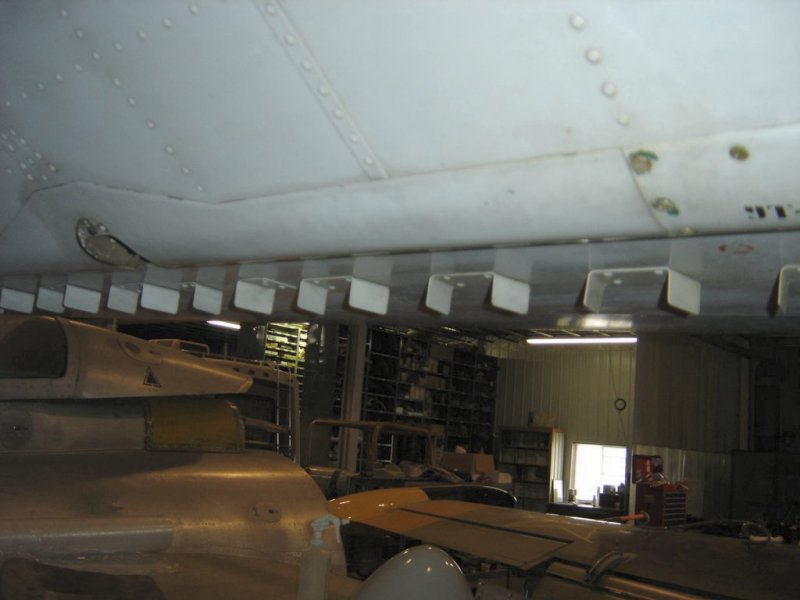

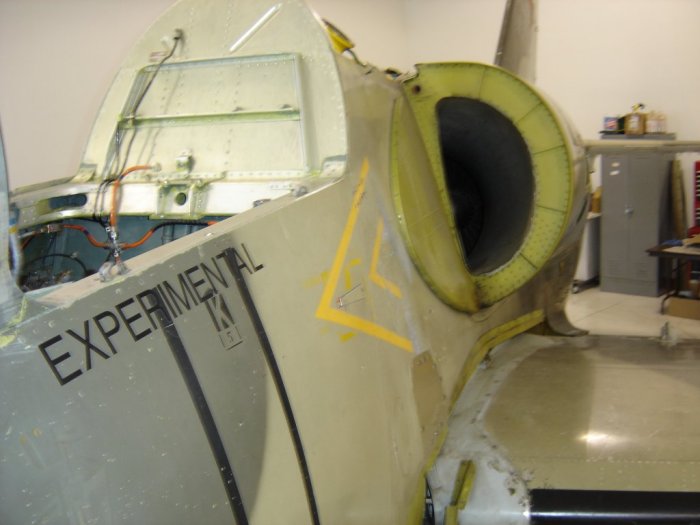

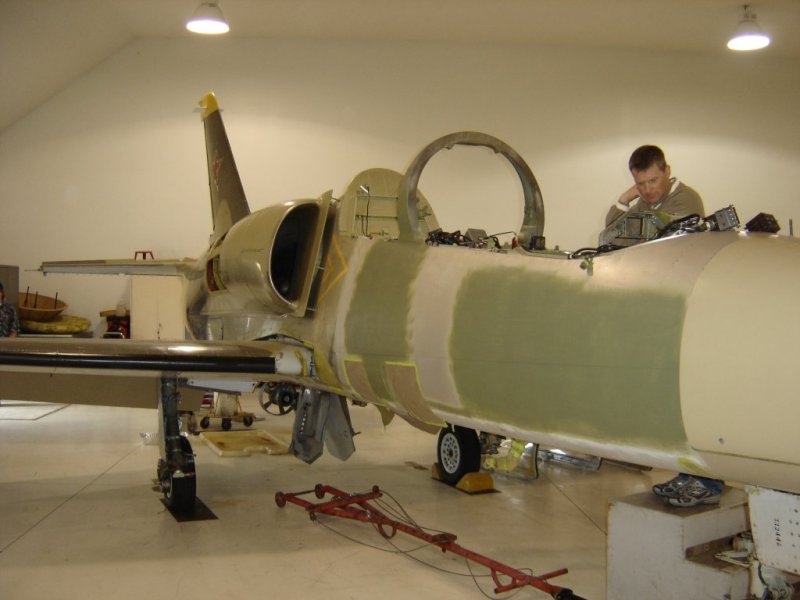

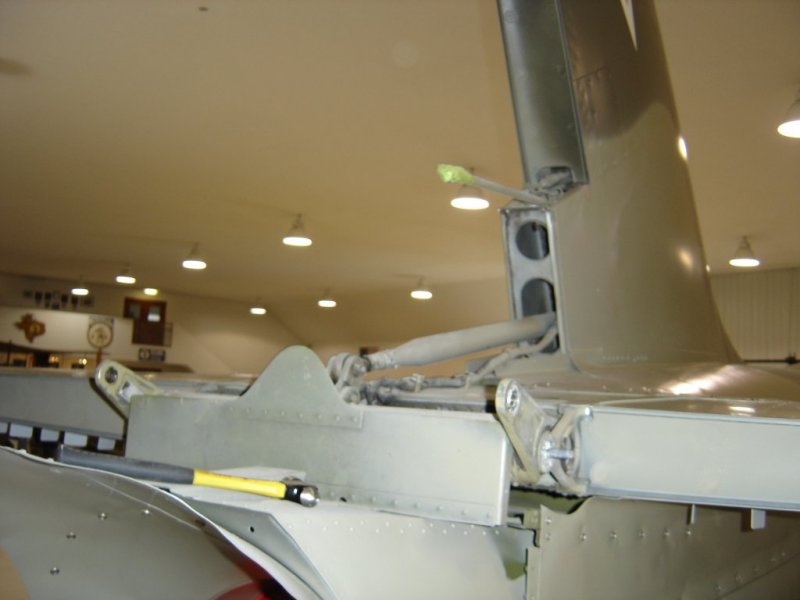

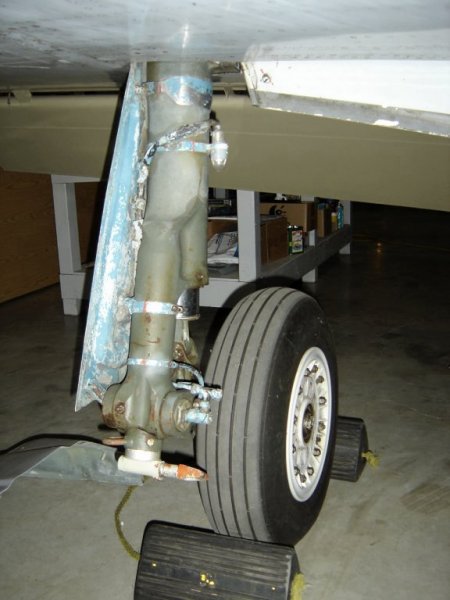

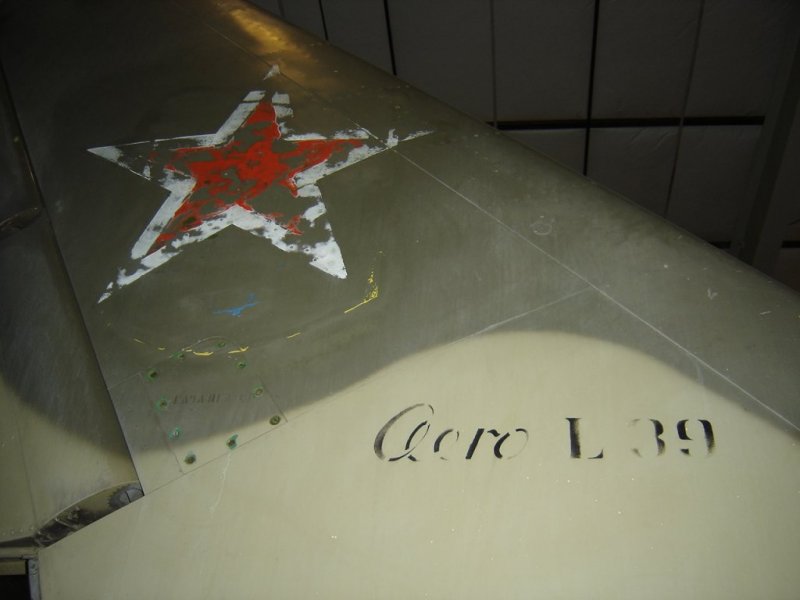

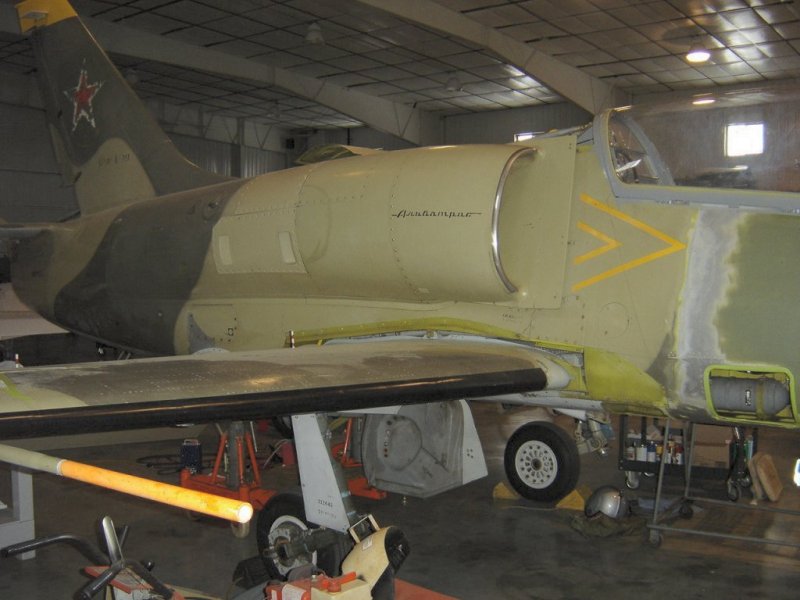

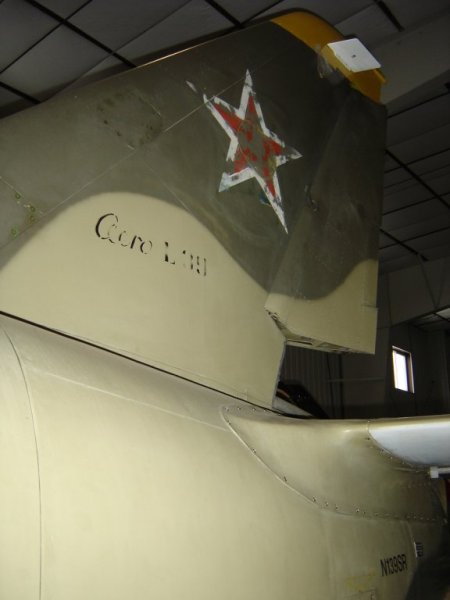

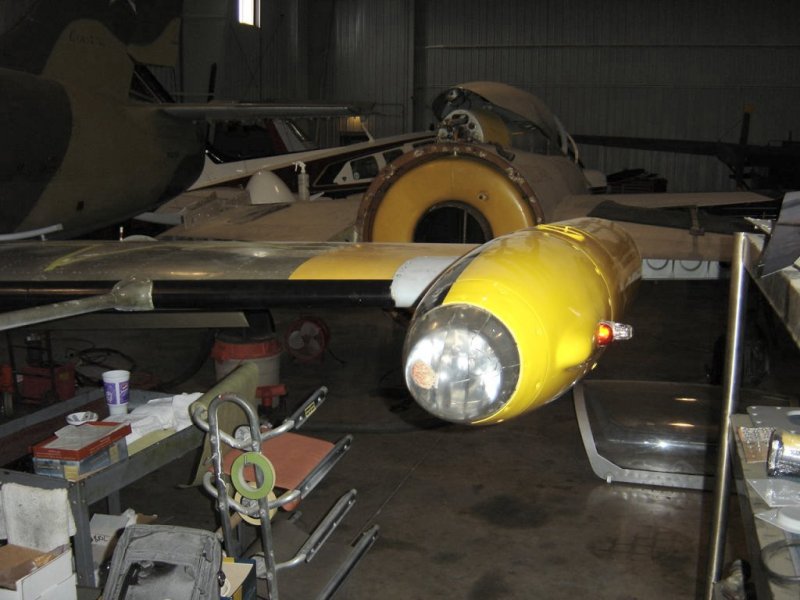

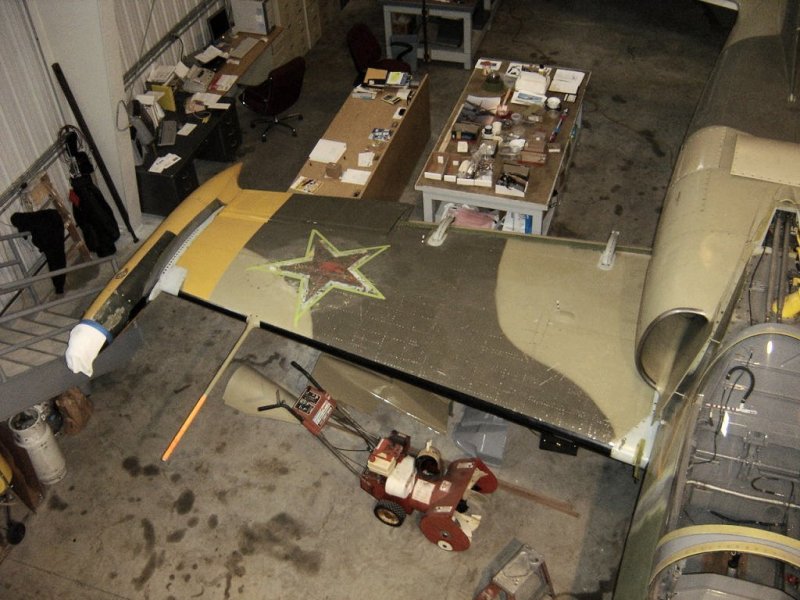

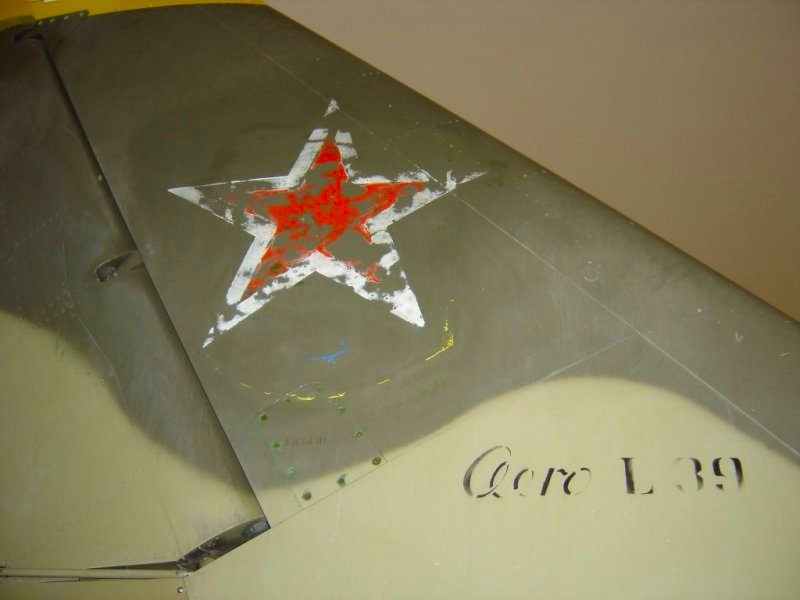

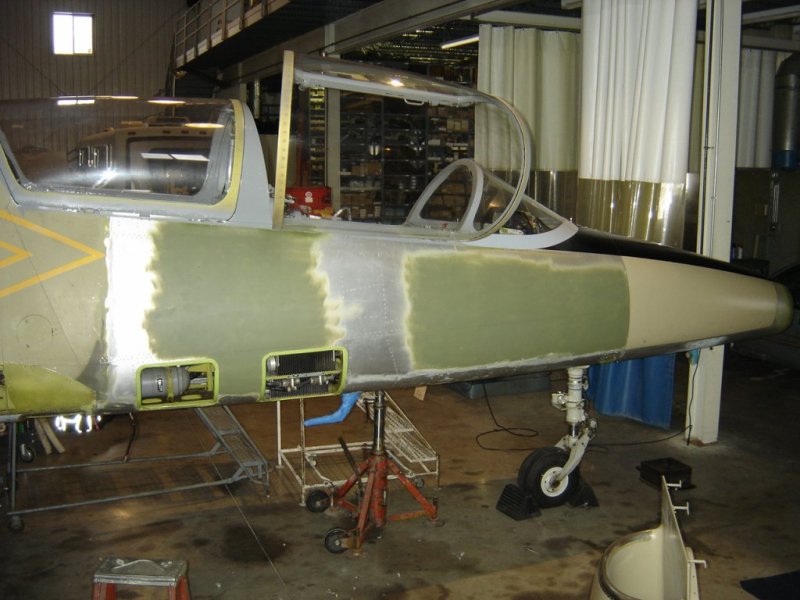

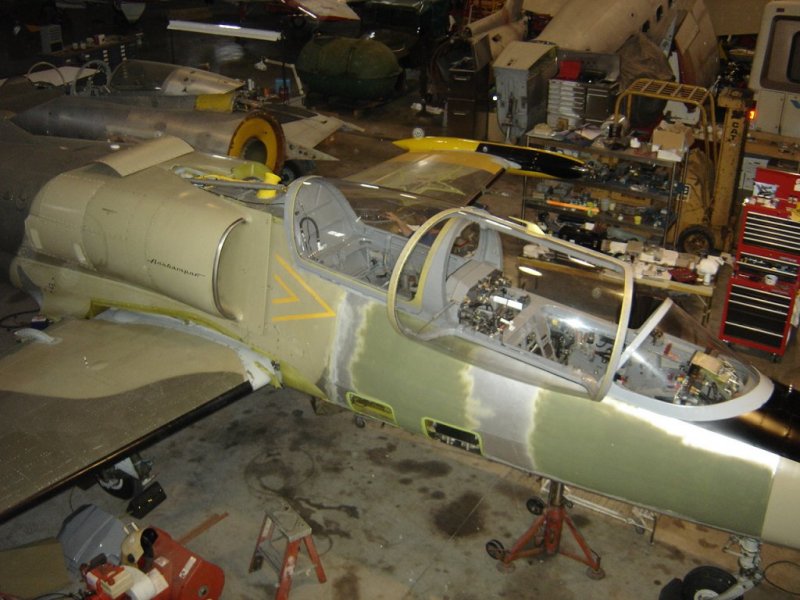

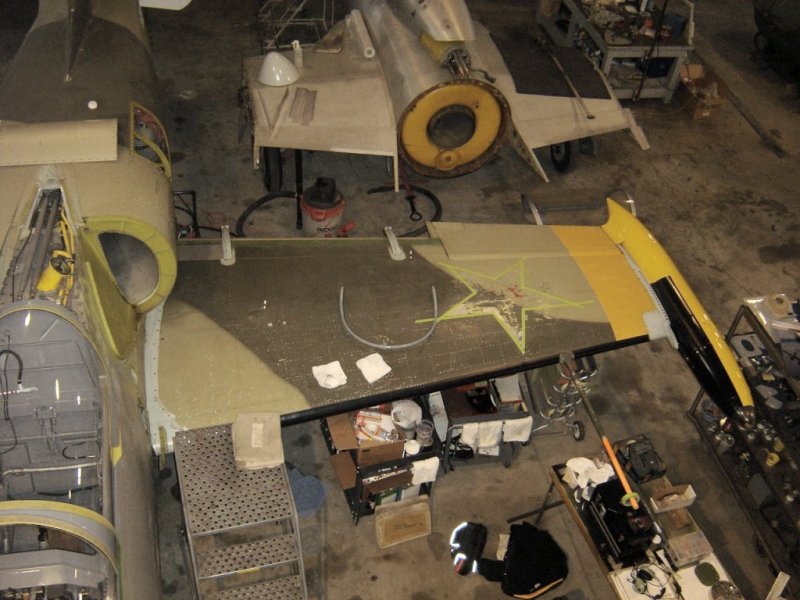

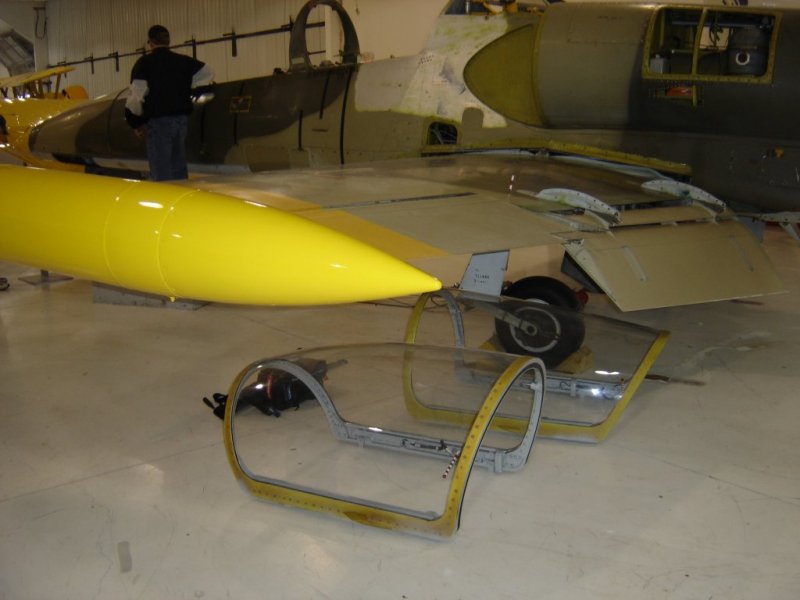

Airframe repair/paint
started with the goal to restore the exterior back to the original Russian
configuration. |
~ Aircraft Specifications ~ |
Length:
|
40 ft., 5 in. |
Height:
|
15 ft., 5.5 in. |
Wing Span:
|
31 ft., 0.5 in. |
Wing Area:
|
202 ft² |
Empty Weight: |
7,892 lbs |
Maximum Takeoff Weight: |
10,360 lbs |

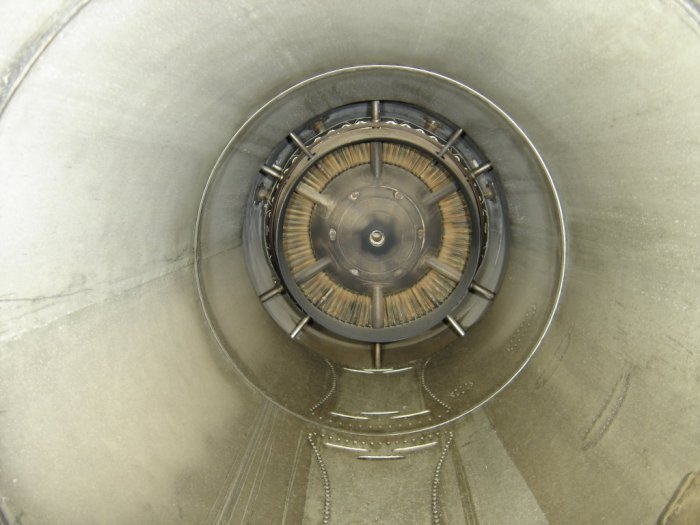

Engine:
|
One 3,792-lb thrust Walter Titan turbofan (Ivchenko
AI-25-TL built under Czech license by Motorlet). |
Performance: |
Take-off Roll: |
2,625 ft. |
Landing Roll: |
3,050 ft. |
Range: |
528 miles on internal fuel
995 miles with external tanks. |
Ceiling: |
37,730 ft. |
Maximum Structural Speed: |
Mach 0.8 |
Maximum Speed at 19,600 ft: |
485 mph |
Maximum Speed at Sea Level: |
435 mph |
G-load Range: |
+8..... - 4 |
Please click a thumbnail to view the larger
image.
Images will open in a new window.

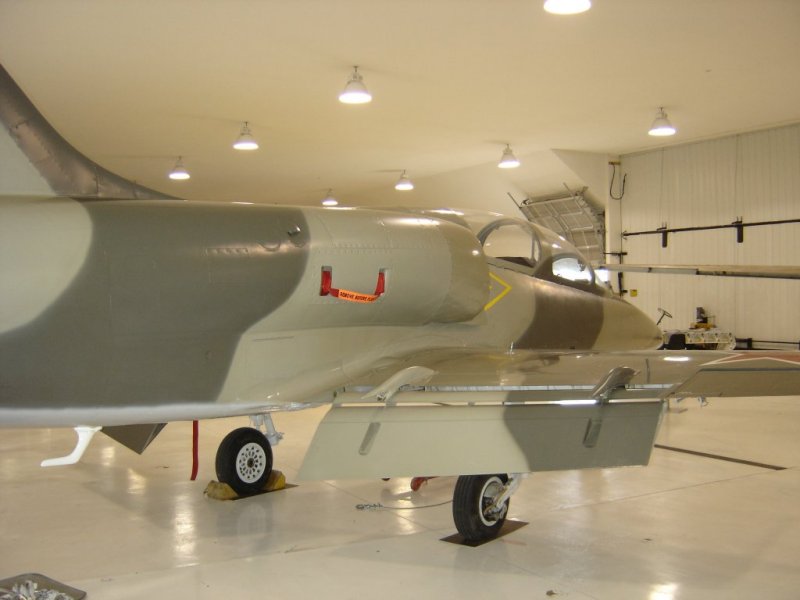

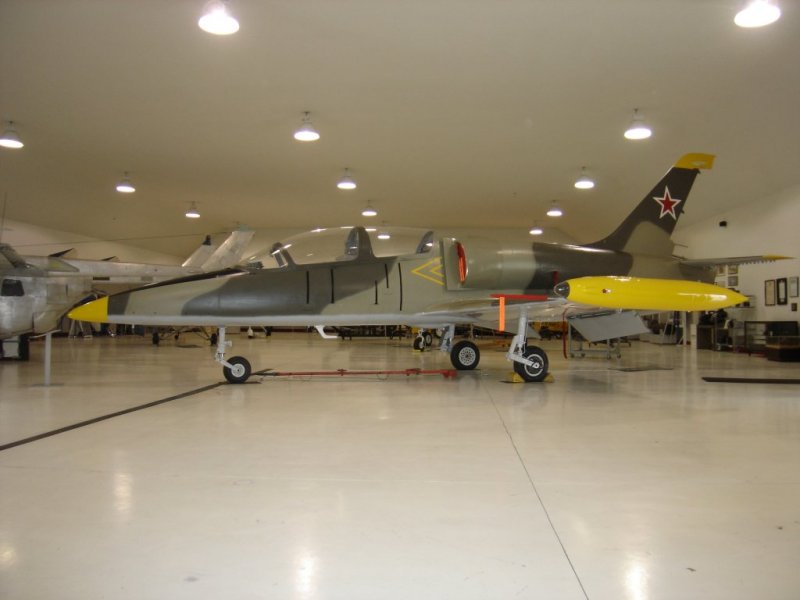

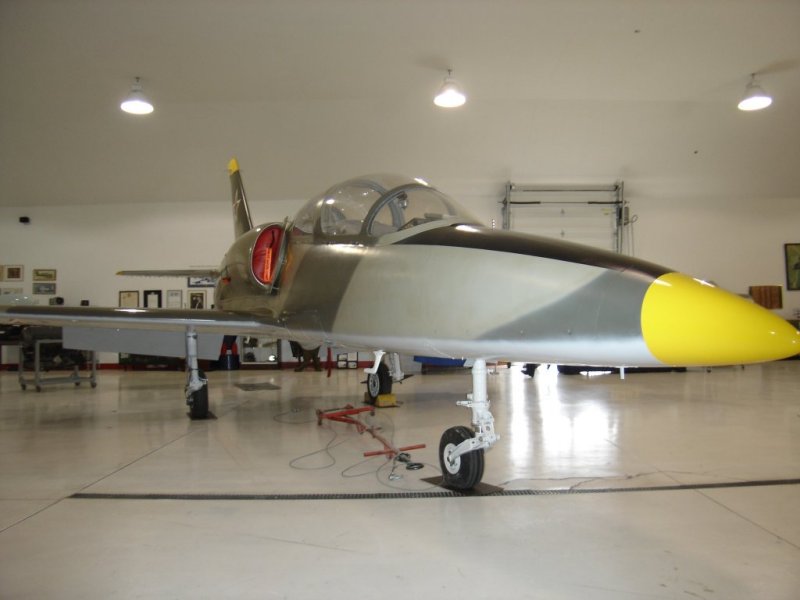

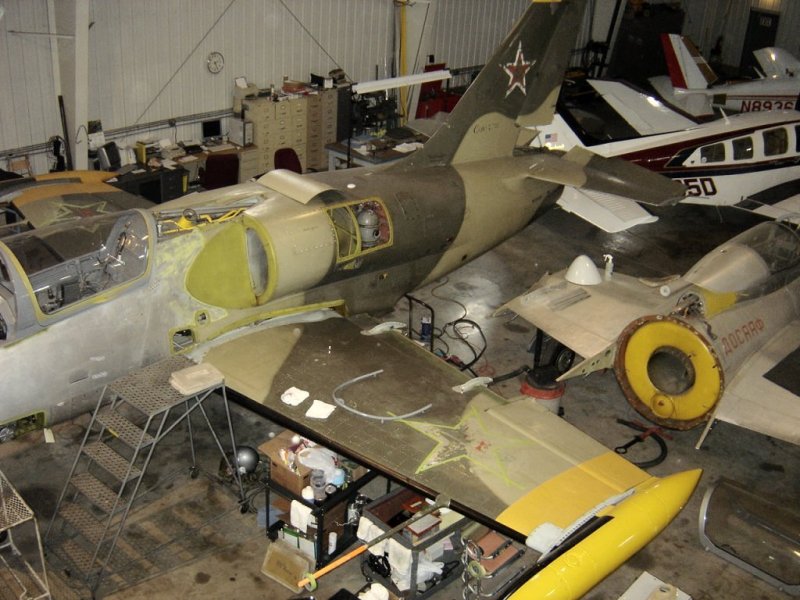

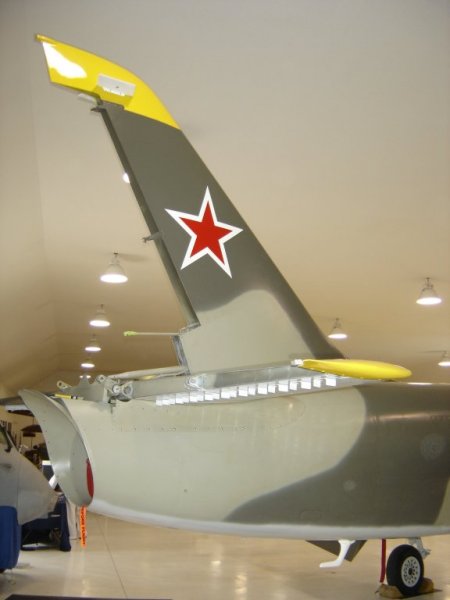

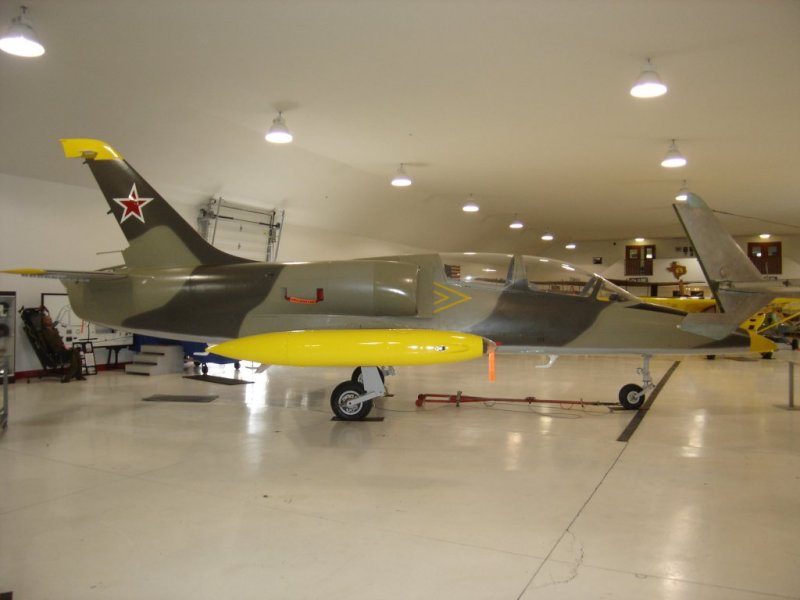

This is how N139SR
will look after restoration.
The side number
will be 112 instead of 109.
|
|
